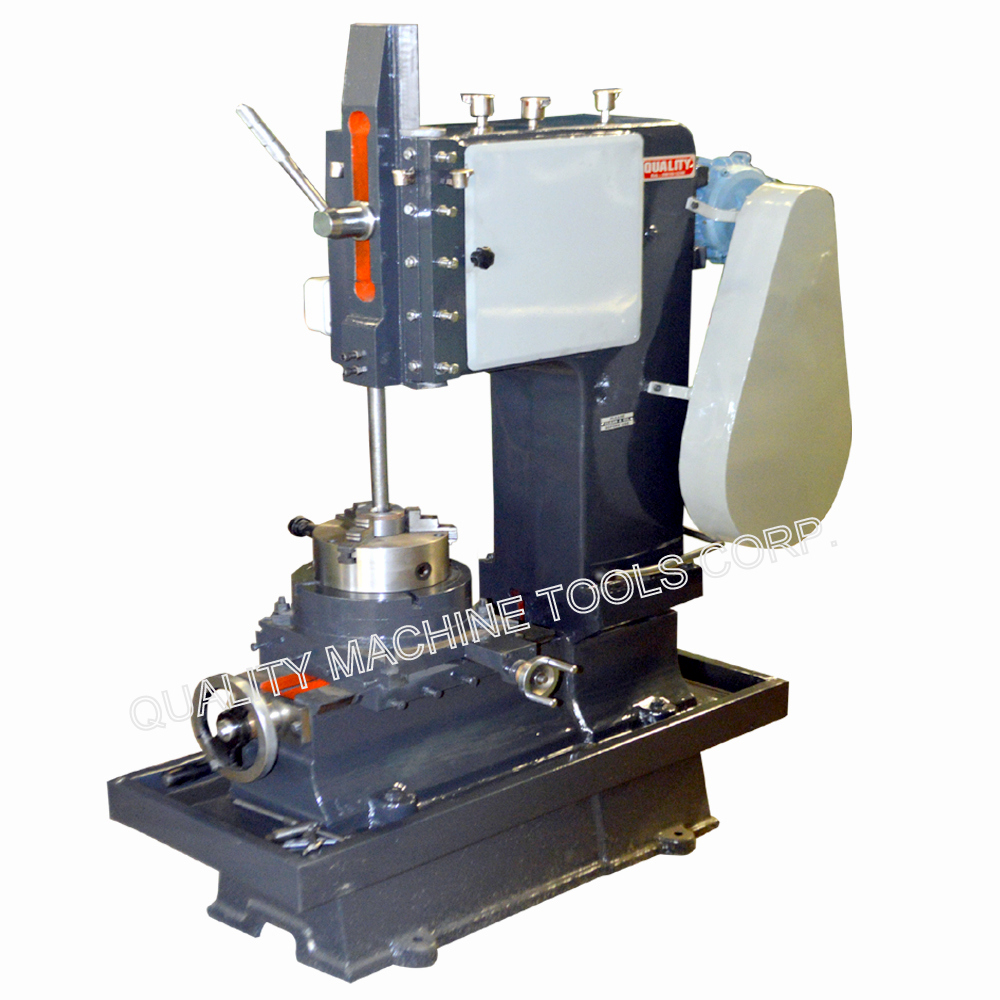

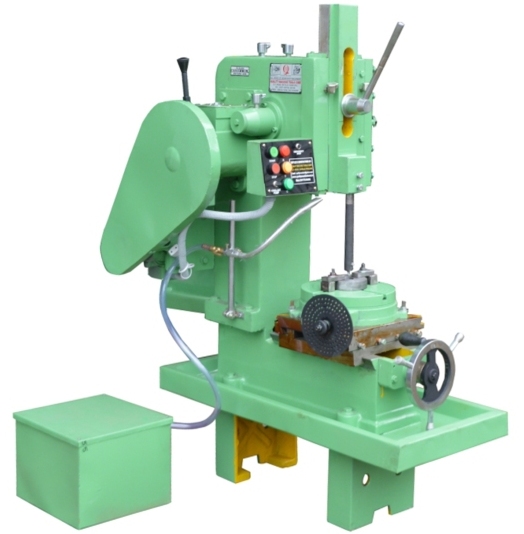

Light Duty Slotting Machine
Light Duty All Geared Slotting Machine
| Model | QMT 6 | QMT 10 | QMT 12 |
| Adjustable Stroke | 10 – 150 MM | 10 – 250 MM | 10 – 300 MM |
| Longitudinal Movement | 200 MM | 230 MM | 300 MM |
| Cross Movement | 110 MM | 110 MM | 110 MM |
| No. of Speed | 3 SPEED | 3 SPEED | 3 SPEED |
| Ram Adjustment | 150 MM | 250 MM | 300 MM |
| Power Required | 1 H.P. | 1.5 H.P. | 2 H.P. |
- High performance
- Low maintenance
- Longer functional life
Standard accessories: Boring Bar, Motor Pulley, Counter V Belt
Extra accessories: Rotary Table, Electric Motor, R/F Switch, True Chuck, Motor, V Belt.
LIGHT DUTY SLOTTING MACHINE
Light Duty Slotting Machine 300 mm Stroke.
